Charging Connector Socket

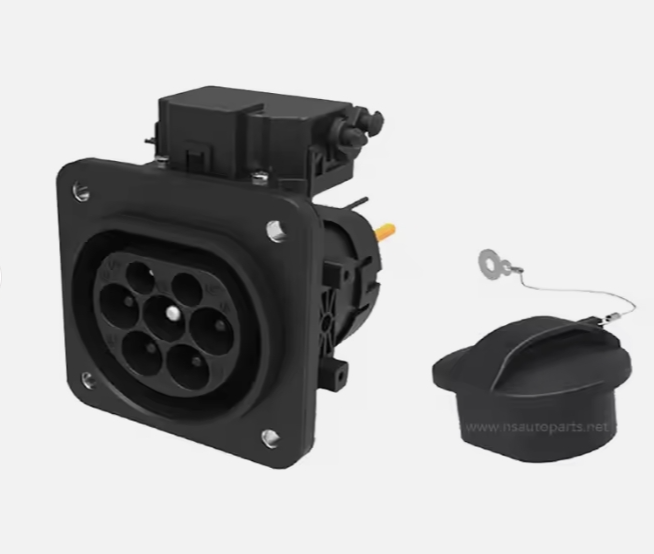

High Quality New Energy Electric Vehicle Parts EV Type 2 Charging Connector Socket
Keyword:
Charging Connector Socket
Category:
Product details
- Place of Origin: Guangdong, China
- Purpose: For retrofit/upgrade
- Condition: New
- Model Number: NSEVCCS01
- Brand Name: NEWSONG
- Rated Voltage: 250V/480V AC
- Rated Current: 16A/32A
- Insulation and Voltage Resistance: 2000V DC
- Insulation Resistance: 500MΩ (1000V DC for 1 minute)
- Insertion and Extraction Force: ≤100N
- Ambient Temperature: -40°C to +85°C
- Electronic Lock: Motor type 12V (optional)
- Temperature Sensor: PT1000 or NTC10k (optional)
- Standards and Specifications: IEC61851-1/IEC62196-1, IEC62196-2
- Cable Specification: L/N/PE: 2.5/6mm²; PP/CP: 0.5mm²
